15 GPM Filter Housing – Carbon Steel
Quick Quote
Call for Price
Features
- Up to 15 GPM flow rate capacity
- 150 PSI pressure rating. ASME code stamping available.
- 250°F (121°C) Maximum operating temperature
- Carbon Steel material of construction
- Easy to use manual lid lift with swing bolt.
- FNPT or flange connection configurations
- Includes Buna N gasket
- Compatible with glycol based heat transfer fluid
Note: 2″ flange connection may be available in for Style 1 only. Please confirm with the factory before ordering (refer technical data sheet).

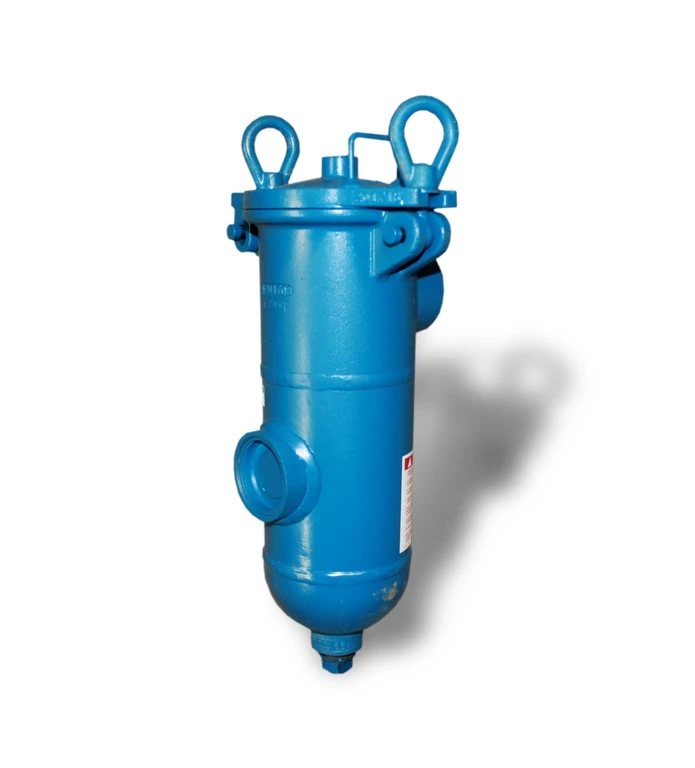

The DYS-03A Carbon Steel bag filter vessels are designed to work up to a fluid flow rate of 15 gallon per minute. These heavy duty vessels are available in different options of inlet types and
nozzle configurations. The vessels accommodate the standard BG03 series bag filters that Dynalene offers. The maximum pressure rating on our standard vessel design is 150 PSI and ASME code stamp can be provided on all of our products.
Features
- Up to 15 GPM flow rate capacity
- 150 PSI pressure rating. ASME code stamping available.
- 250°F (121°C) Maximum operating temperature
- Carbon Steel material of construction
- Easy to use manual lid lift with swing bolt.
- FNPT or flange connection configurations
- Includes Buna N gasket
- Compatible with glycol based heat transfer fluid
Application
- Water filtration
- Glycol filtration
| Weight | 21.5 lbs |
|---|
