15 GPM Filter Housing – 304 Stainless Steel
Call for Price
Features
- Up to 15 GPM flow rate capacity
- 150 PSI pressure rating. ASME code stamping available.
- 250°F (121°C) Maximum operating temperature
- 304 Stainless Steel material of construction
- Easy to use manual lid lift with swing bolt.
- FNPT or flange connection configurations
- Includes Buna N gasket
- Compatible with glycol based heat transfer fluid
Note: 2″ flange connection may be available in for Style 1 only. Please confirm with the factory before ordering (refer technical data sheet).
15 GPM Filter Housing – 316 Stainless Steel
Call for Price
Features
- Up to 15 GPM flow rate capacity
- 150 PSI pressure rating. ASME code stamping available.
- 250°F (121°C) Maximum operating temperature
- 316 Stainless Steel material of construction
- Easy to use manual lid lift with swing bolt.
- FNPT or flange connection configurations
- Includes Buna N gasket
- Compatible with glycol based heat transfer fluid
Out of stock
15 GPM Filter Housing – 316 Stainless Steel (Call for Pricing)
Call for Price
Features
- Up to 15 GPM flow rate capacity
- 150 PSI pressure rating. ASME code stamping available.
- 250°F (121°C) Maximum operating temperature
- 316 Stainless Steel material of construction
- Easy to use manual lid lift with swing bolt.
- FNPT or flange connection configurations
- Includes Buna N gasket
- Compatible with glycol based heat transfer fluid
15 GPM Filter Housing – Carbon Steel
Call for Price
Features
- Up to 15 GPM flow rate capacity
- 150 PSI pressure rating. ASME code stamping available.
- 250°F (121°C) Maximum operating temperature
- Carbon Steel material of construction
- Easy to use manual lid lift with swing bolt.
- FNPT or flange connection configurations
- Includes Buna N gasket
- Compatible with glycol based heat transfer fluid
Note: 2″ flange connection may be available in for Style 1 only. Please confirm with the factory before ordering (refer technical data sheet).
30 GPM Filter Housing – 304 Stainless Steel
Call for Price
Features
- Up to 30 GPM flow rate capacity
- 150 PSI pressure rating. ASME code stamping available.
- 250°F (121°C) Maximum operating temperature
- 304 Stainless Steel material of construction
- Easy to use manual lid lift with swing bolt.
- FNPT or flange connection configurations
- Includes Buna N gasket
- Compatible with glycol based heat transfer fluid
Note: 2″ flange connection may be available in for Style 1 only. Please confirm with the factory before ordering (refer technical data sheet).
30 GPM Filter Housing – 316 Stainless Steel
Call for Price
Features
- Up to 30 GPM flow rate capacity
- 150 PSI pressure rating. ASME code stamping available.
- 250°F (121°C) Maximum operating temperature
- 316 Stainless Steel material of construction
- Easy to use manual lid lift with swing bolt.
- FNPT or flange connection configurations
- Includes Buna N gasket
- Compatible with glycol based heat transfer fluid
Note: 2″ flange connection may be available in for Style 1 only. Please confirm with the factory before ordering (refer technical data sheet).
30 GPM Filter Housing – Carbon Steel
Call for Price
Features
- Up to 30 GPM flow rate capacity
- 150 PSI pressure rating. ASME code stamping available.
- 250°F (121°C) Maximum operating temperature
- Carbon Steel material of construction
- Easy to use manual lid lift with swing bolt.
- FNPT or flange connection configurations
- Includes Buna N gasket
- Compatible with glycol based heat transfer fluid
Note: 2″ flange connection may be available in for Style 1 only. Please confirm with the factory before ordering (refer technical data sheet).

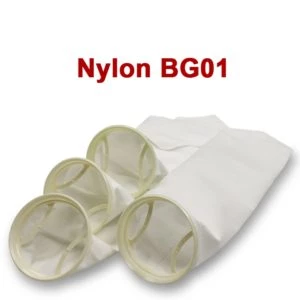

BG01 Nylon Bags
$20.50 – $24.50
Filter Bag Brochure

Features
- Compatible with water and glycol based fluid.
- Maximum operating temperature 275°F (135°C)
- Highly efficient particle removal capability that is ideal for filtration in continuously operated fluid systems.
- Available in 5, 10 and 25 micron ratings.
- Suitable to use with DYS01 bag / sock filter vessel.
- Withstands high solid loading, up to twice the dirt holding capacity of a standard filter bags.

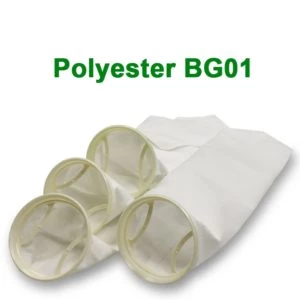

BG01 Polyester Bags
$4.30 – $4.85
Filter Bag Brochure

Features
- Compatible with water and glycol based fluid.
- Maximum operating temperature 275°F (135°C)
- Highly efficient particle removal capability that is ideal for filtration in continuously operated fluid systems.
- Available in 1, 5, 10 and 25 micron ratings.
- Suitable to use with DYS01 bag / sock filter vessel.
- Withstands high solid loading, up to twice the dirt holding capacity of a standard filter bags.

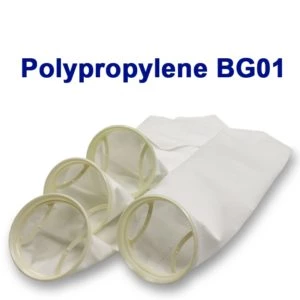

BG01 Polypropylene Bags
$5.02 – $6.22
Filter Bag Brochure

Features
- Compatible with water and glycol based fluid.
- Maximum operating temperature 220° F (104° C)
- Highly efficient particle removal capability that is ideal for filtration in continuously operated fluid systems.
- Available in 1, 5, 10 and 25 micron ratings.
- Suitable to use with DYS01 bag / sock filter vessel.
- Withstands high solid loading, up to twice the dirt holding capacity of a standard filter bags.
BG02 Nylon Bags
$21.30 – $26.50
Filter Bag Brochure

Features
- Compatible with water and glycol based fluid.
- Maximum operating temperature 275°F (135°C)
- Highly efficient particle removal capability that is ideal for filtration in continuously operated fluid systems.
- Available in 5, 10 and 25 micron ratings.
- Suitable to use with DYS02 bag / sock filter vessel.
- Withstands high solid loading, up to twice the dirt holding capacity of a standard filter bags.

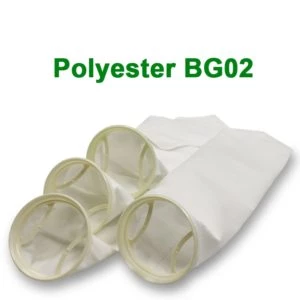

BG02 Polyester Bags
$7.45 – $8.55
Filter Bag Brochure

Features
- Compatible with water and glycol based fluid.
- Maximum operating temperature 275°F (135°C)
- Highly efficient particle removal capability that is ideal for filtration in continuously operated fluid systems.
- Available in 1, 5, 10 and 25 micron ratings.
- Suitable to use with DYS02 bag / sock filter vessel.
- Withstands high solid loading, up to twice the dirt holding capacity of a standard filter bags.
